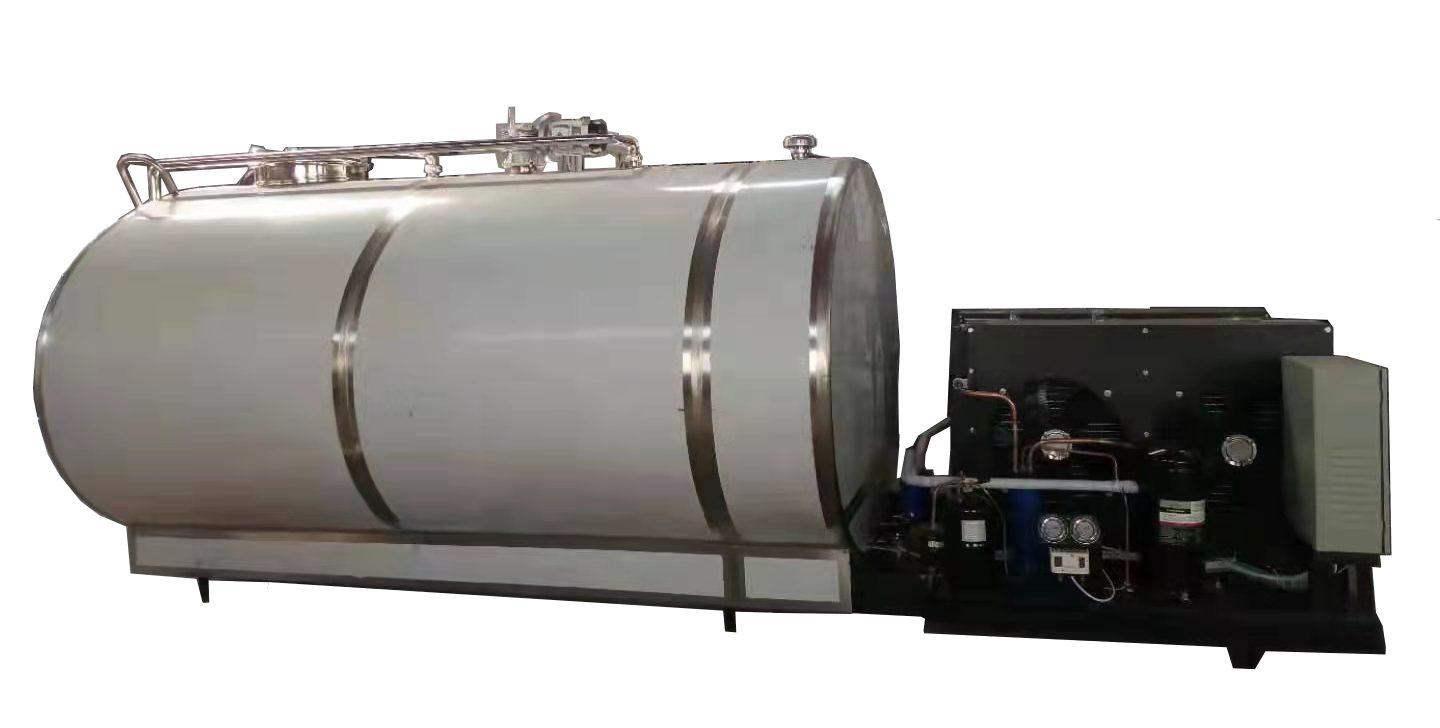

Milk Cooling Tank5000L milk cooling tank
Feature Introduction
Dairy farms rely on highly efficient cooling of the milk to keep the milk at a consistent temperature of about 4℃ in the milk tanks until the milk is collected for further processing.
Milk is stored at the farms in either closed or open milk tanks. To maintain the quality of the milk, it is quickly cooled from 38℃ leaving the cow to 4℃ in the milk tank. The milk tank is typically equipped with a mixer to accelerate the cooling process and homogenize the milk.
Full range of capacity
The capacity range is customized from 100L to 60,000L.
| Model | Overall Size（㎜） | Capacity（L） | Power（KW） |
|---|---|---|---|
| ZLBXG-500L | 4200×2100×1800 | 5000L | 13KW |
| Refrigerating Fluid(R) | R22 | Cooling Method | Air Cooling |
| Material | Stainless Steel 304 | Inner Layer | 2.5mm SS304 Food Grade |
| Cladding | 2mm SS304 Food Grade | Out Layer | 2mm SS304 Food Grade |
| Voltage | 380V 50HZ | Insulation | Polyurethane pouring type integral foaming 80mm |
| Milk Outlet Diameter | 51mm | Insulation Performance | ≤2℃/24h |
| Compressor Brand | Copeland 2 units 7PX2 | Agitator Motor | 750W 35r/min |
| Evaporator | Spot welding | Expansion valve | Danfoss |
| Frame | Galvanized | Weight | 1000Kg |
| Cooling speed | GradeⅡ（Put 50% of the rated capacity of milk, and then cooling milk from 35 ℃ to 4 ℃ ,it takes <3 hours） |
|---|---|
| Condenser | 2 sets of 70 square meters air condenser, 4 flexible fan |
| Tank | One-time mechanical head, the arc radius R is 30 mm |
| Operating system | Microcomputer controller, fully automatic control of the operation of the entire system |
| Cleaning method | One rotary CIP cleaning ball, connected to milk pump, semi-automatic cleaning |
| Weighing System | 4 Weighing sensors with a digital display |
